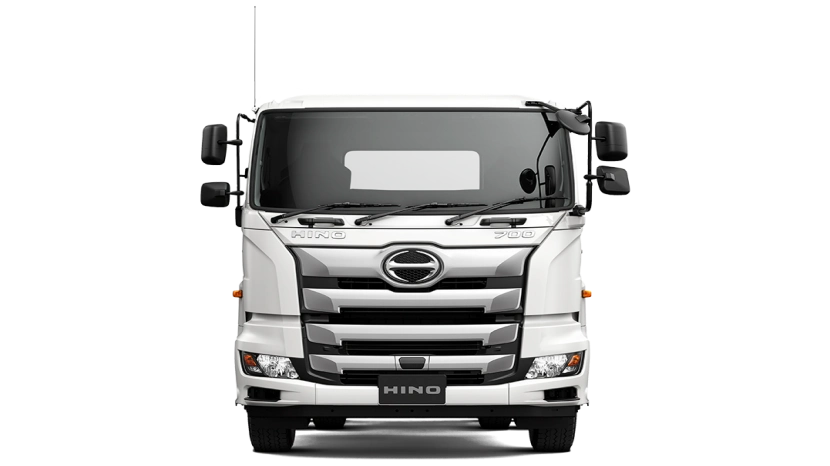

Hino truck 700 2025 ZS 39.5 Tons

Hino truck 700 Overview

The Hino 700 2025 ZS is a robust 6×4 heavy-duty truck, specifically engineered for demanding construction and heavy transport applications, such as dump trucks. Hino truck 700 boasts a strong chassis and a powerful 13-liter engine, making it an ideal choice for off-road conditions and large-scale projects.

Key Specifications of Hino 700 2025 ZS:

Performance and Engine:

• Type: Heavy-duty truck (6×4) – Cab Chassis
• Max Payload: 39.5 tons
• Engine: Turbocharged Diesel with Intercooler
• Engine Displacement: 12.9 Liters
• Horsepower: 410 HP
• Max Torque: 1,618 Nm (High torque from 1,100 RPM – ideal for full load starts)
• Injection System: Electronic Common Rail
• Emission Standard: Euro 3

Transmission and Speed:

• Transmission: ZF Manual with 16 Forward + 2 Reverse Gears
• Control Type: Mechanical with Air Assist (Power Shift) – Easy to operate under pressure
• Max Speed: 99 km/h (under 39.5-ton load)
• Gradeability: 60% – Effortlessly climbs steep inclines

Brakes and Safety:

• Main Braking System: Full Dual Circuit Air Brakes
• ABS: Available (prevents wheel lock-up during braking)
• Parking Brake: Spring Brakes on Rear Axles
• Auxiliary Brakes: Hino Engine Retarder – Reduces brake wear on descents
• Brake Mixing System: Available – Balances air and engine brakes
• Tires and Wheels:
• Number of Tires: 10
• Tire Size: 325/95R24 – Suitable for dirt and sandy roads
• Wheel Rim Type: Trilex type (6 spokes) – Durable and easy to maintain

Chassis and Dimensions:

• Overall Length: 8.2 meters
• Overall Width: 2,570 mm
• Overall Height: 3,210 mm
• Wheelbase: 4,145 + 1,500 mm – Ensures good stability under load
• Chassis Type: 9mm thick steel ladder frame – Strong and resistant to bending
• Ground Clearance (at diff): 335 mm – Suitable for rough terrain

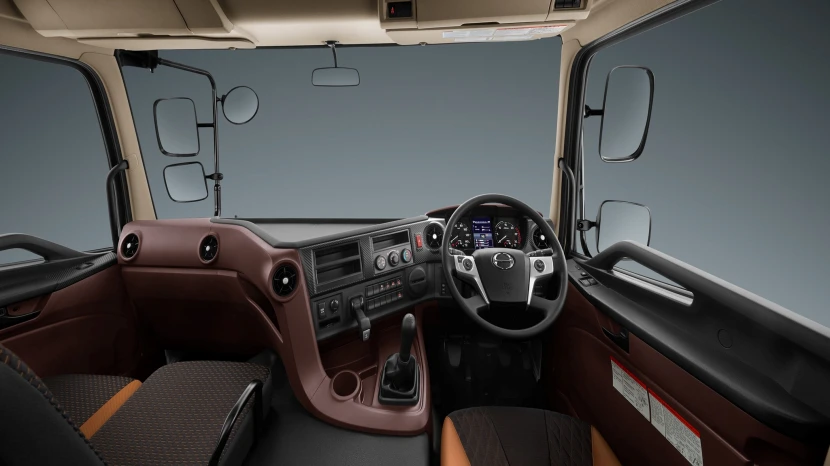

Cabin and Features:

• Cabin Type: Forward Control Tilting Cabin (Manual Tilt)
• Number of Seats: 2 (Driver + Passenger)
• Driver’s Seat: 4-way adjustable with lumbar support and 3-point seatbelt
• Air Conditioning & Heating: Available
• Audio System: AM/FM Radio
• Instrument Panel: Features speedometer, tachometer, water temperature, air pressure gauges, and various warning lights.
• Rear-View Mirrors: EC type with Arabic warning
• Overhead Console: Available on both sides
• Fire Extinguisher: Available in the cabin

Fuel and Electrical System:

• Fuel Tank Capacity: 300 Liters – Sufficient for long distances
• Electrical System: 24 Volt (Two 12V batteries in series)
• Alternator: 24 Volt, 60 Amp – Supports additional electrical loads
• Reverse Alarm: Available
